Ubuntu下单网卡多IP地址的配置

发布时间:2016-05-24 15:15:20来源:linux网站作者:prettyshuang

删除用户默认配置文件
由于在默认清空下,配置文件是系统自动生成的用户设备配置文件保存在/etc/udev/rule.d/下面:
#cp /etc/udev/rule.d /etc/udev/rule.d.bak.0 -R
# rm /etc/udev/rule.d/*


修改网卡配置文件,添加多IP配置:
#vim /etc/network/interfaces
为如下内容:
auto lo
iface lo inet loopback
auto eth0
iface eth0 inet static
address 192.168.76.192
netmask 255.255.255.0
gateway 192.168.76.254
auto eth0:0
iface eth0:0 inet static
address 192.168.76.193
netmask 255.255.255.0
gateway 192.168.76.254
auto eth0:1
iface eth0:1 inet static
address 192.168.76.194
netmask 255.255.255.0
gateway 192.168.76.254


实验环境,我添加了三个IP地址。


让配置生效
#/etc/init.d/networking restart


检查效果

Ubuntu下单网卡多IP地址的配置

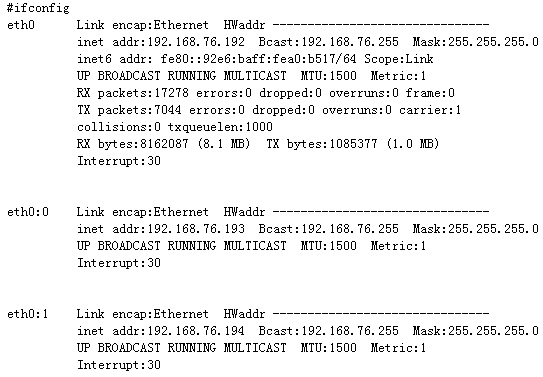

#ifconfig
eth0      Link encap:Ethernet  HWaddr -------------------------------
          inet addr:192.168.76.192  Bcast:192.168.76.255  Mask:255.255.255.0
          inet6 addr: fe80::92e6:baff:fea0:b517/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:17278 errors:0 dropped:0 overruns:0 frame:0
          TX packets:7044 errors:0 dropped:0 overruns:0 carrier:1
          collisions:0 txqueuelen:1000
          RX bytes:8162087 (8.1 MB)  TX bytes:1085377 (1.0 MB)
          Interrupt:30


eth0:0    Link encap:Ethernet  HWaddr -------------------------------
          inet addr:192.168.76.193  Bcast:192.168.76.255  Mask:255.255.255.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          Interrupt:30


eth0:1    Link encap:Ethernet  HWaddr -------------------------------
          inet addr:192.168.76.194  Bcast:192.168.76.255  Mask:255.255.255.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          Interrupt:30


可以看到三个IP地址,就说明配置成功了。
